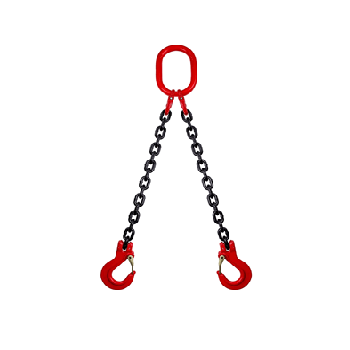

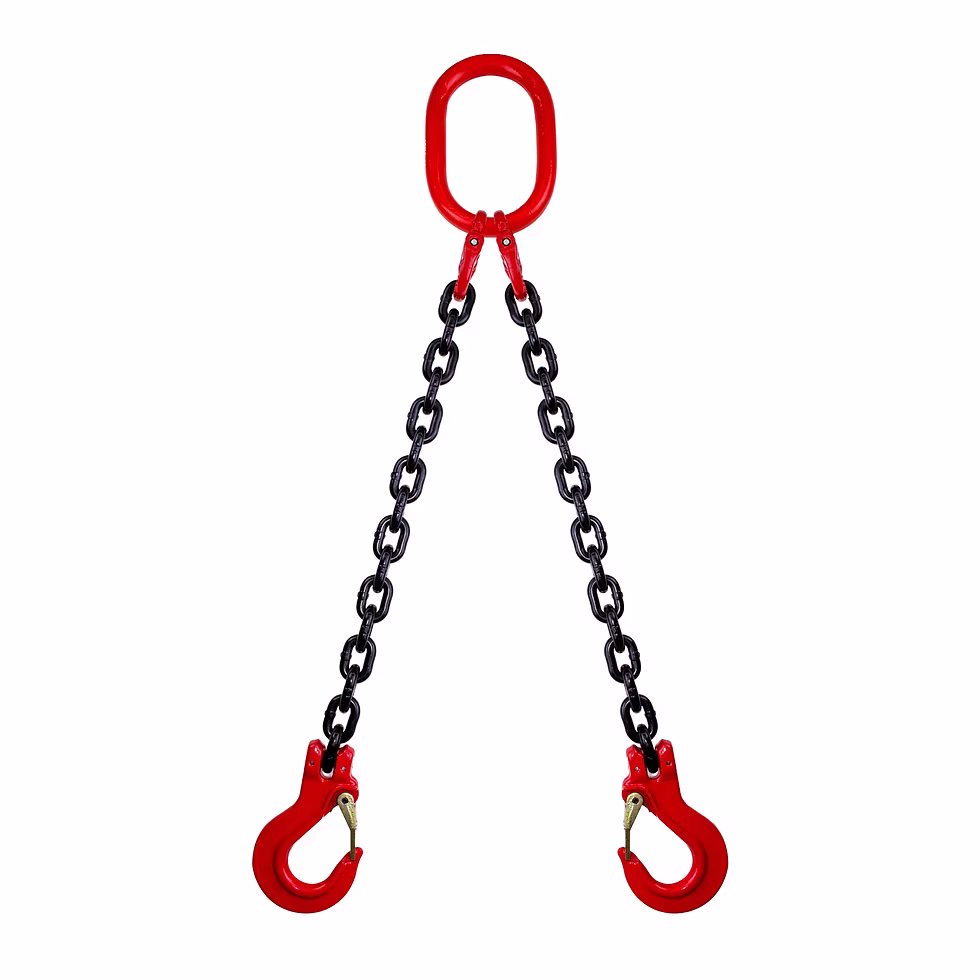

Cobra G80 2 Leg Chain Sling Considerations

These cobra grade 80 chain slings meet BS EN requirements but are not thoroughly certified like grade 8 slings.

When choosing your options such as WLL, chain size and length and components you should consider what loads you will be lifting and how you will need to lift them. Chain slings can be used in multiple ways including hitch types like the choke hitch or basket hitch. Multi-leg slings must always be spaced evenly around the centre of gravity, this causes the slings to be set a at an angle rather than straight/vertical.

Different hitches and different angles can each have an effect on the maximum working load limit due to the changing forces applied when used in these ways. You should always consult the manufacturers slinging charts to be sure you are within the respective limits.

Cobra G80 Components

• Short link chain – black finish.
• Master link – red painted finish
• Connectors – red finish
• Sling Hook with safety catch – clevis fitting & red painted finish
• Self locking hook – clevis fitting – red painted finish
• Swivel eye self lock hook – permanent eye fitting – red painted finish
• C hook – clevis fitting – red painted finish – NO safety latch
• Shortening Hooks – permanent eye fittings for master link to enable proper chain shortening.

Specifications, Dimensions & Other information

The full specifications and dimensions for each component can be found in the tab above. You will also see the slinging chart which gives information on hitches and angles and their respective WLL reductions required. Ensure you read up on the specifics to ensure you are getting the right equipment for your needs.

A safe use guide is also available in the download section.

Get in touch if you have any questions.
