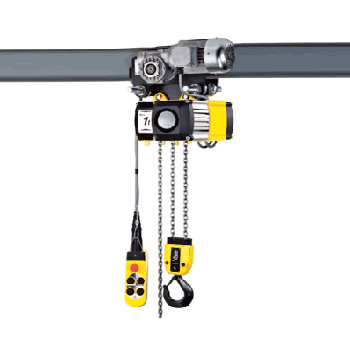

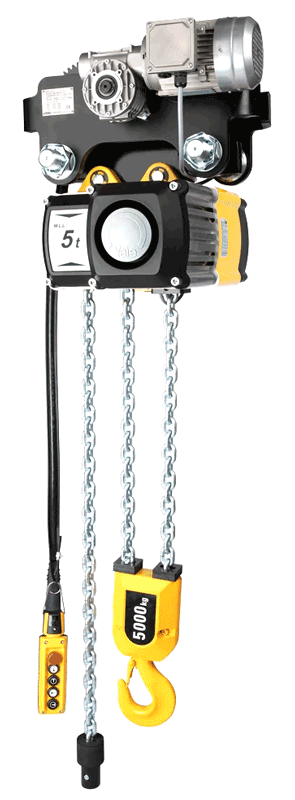

Yale CPV/F Electric Hoist and Trolley Combo
£1,253.80 – £6,030.38
Need an electric hoist and a powered beam trolley? Why buy separate products when you can buy the complete system in one go! – that’s what this hoist and trolley combo offers, whilst ensuring they work seamlessly together.
Incorporating the CPV/F electric hoist combined with a power drive trolley this Yale combo ensures the easy lifting and moving of heavy loads. Available in capacities up to 5000kg with great lifting and travelling speeds. Trolleys available to suit a range of beam sizes.
Yale CPV/F Electric Hoist and Trolley Combo
The Yale CPV/F Electric Hoist and Trolley combination is designed for demanding material handling applications. This powered set up delivers performance, reliability, and safety in industrial environments where heavy-duty lifting and moving capabilities are essential.
Yale Powered Hoist and Trolley Features
This Yale combination includes the trusted CPV/F electric chain hoist and can be paired with a simple push travel trolley or integrated with the VTE power drive beam trolley which is available in single or dual speed set ups. Together they have many features and advantages, of which we will look at some key points next. For the full rundown please view the specifications, operating manual and information downloads above.
Key Elements
-
Trolley speeds: Up to 18 meters per minute
-
Load capacities: Comprehensive range from 500 to 5000kg
-
Lifting speeds: Up to 8 meters per minute
-
Speed options: Single or dual speed configurations
-
Remote control: Wireless control option for enhanced safety and convenience
Motor & Transmission
The power drive trolley has a travel motor with worm gear transmission. This drivetrain set up provides several advantages. This type of transmission enables the system to handle substantial loads with precision and control. As worm gears are robust and capable of withstanding the demands of continuous use it has great durability and suitable for high cycle rates.
Electric Hoist & Trolley Combo Operation
The CPV/F hoist and trolley combination provides smooth start up and continuous smooth operation when both lifting loads and when moving along the beam with great precision.
The hoist incorporates an auto-brake system to ensure the brake automatically engages when controls are released, if the power fails they will auto-engage too for optimum safety.
This self-braking feature provides assurance for the user and helps prevent potentially dangerous load drops, making it an essential safety component in any industrial lifting application.
Similar Hoist and Trolley Combinations
Should this Yale combo not quite suit your requirements then its worth considering the Delta DEH electric hoist and Trolley combo which is available with a push travel trolley or a dual speed powered trolley up to 2000kg.
Alternatively we offer a choice of stand alone electric hoists which can be paired with a beam clamp, push trolley or power trolley on request. Get in touch if you need any help with your choice.
| Capacity/Speed (CPV Combo) | 1000KG/Dual Speed 4&1 m/min | CPV/F 10-4, 1000KG/Dual Speed 8&2 m/min | CPV/F 10-8, 1000KG/Single Speed 4 m/min | CPV 10-4, 1000KG/Single Speed 8 m/min | CPV 10-8, 2000KG/Dual Speed 4&1 m/min | CPV/F 20-4, 2000KG/Single Speed 4 m/min | CPV 20-4, 2500KG/Dual Speed 8&2 m/min | CPV/F 25-8, 250KG/Dual Speed 8&2 m/min | CPV/F 2-8, 5000KG/Dual Speed 4&1 m/min | CPV/F 50-4, 500KG/Dual Speed 4&1 m/min | CPV/F 5-4, 500KG/Dual Speed 8&2 m/min | CPV/F 5-8, 500KG/Single Speed 8 m/min | CPV 5-8 |
|---|---|
| Trolley Type (CPV Combo) | Push Travel Trolley (CPV Combo), Single Speed Powered Trolley, Dual Speed Powered Trolley |
| Height Of Lift (CPV Combo) | 3 MTR, 4 MTR, 5 MTR, 6 MTR |
