Subsea Chain Block – Hacketts SSC4
Price range: £251.15 through £2,018.27

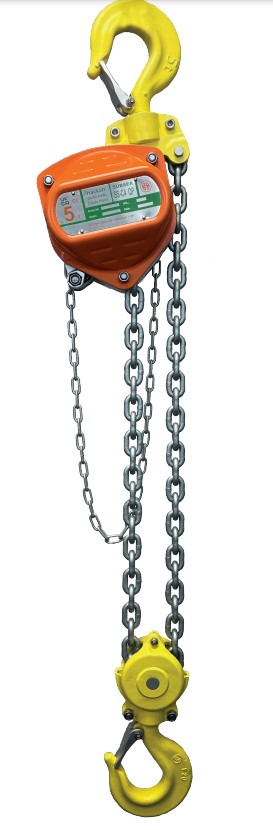

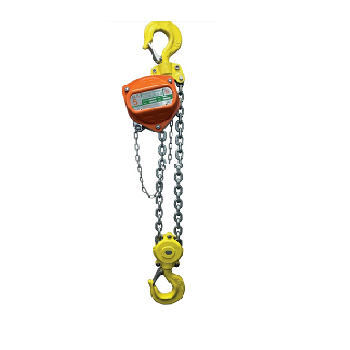

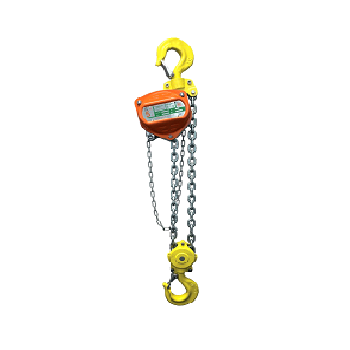

The SSC4 is a subsea chain block made in the UK by the William Hacketts brand. Handling loads up to 50 tonnes for up to 21 days in a single immersion or 31 days for multi-immersions and complying to all the necessary standards you can be confident with this chain block for subsea lifting operations.
About the Subsea Chain Block – Hacketts SSC4

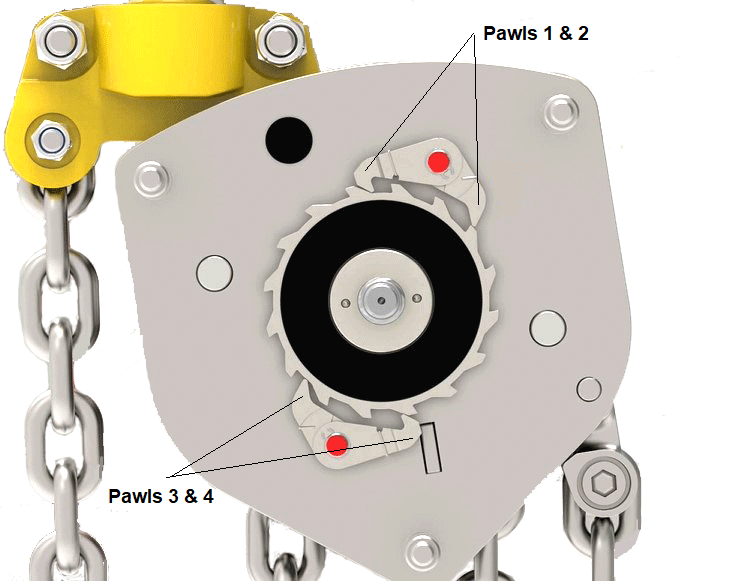

With its offset quad pawl design load holding safety is second to none. As the gear turns each pawl engages and because there are four it is unlikely that all of them will fail to engage at the same time, at least one will always lock in and thus, hold the load.
Another benefit to the quad pawl design is that adjustments are more precise and therefore offers better tensioning abilities. Fully tested to 2x the normal standard you can be assured of optimum safety.

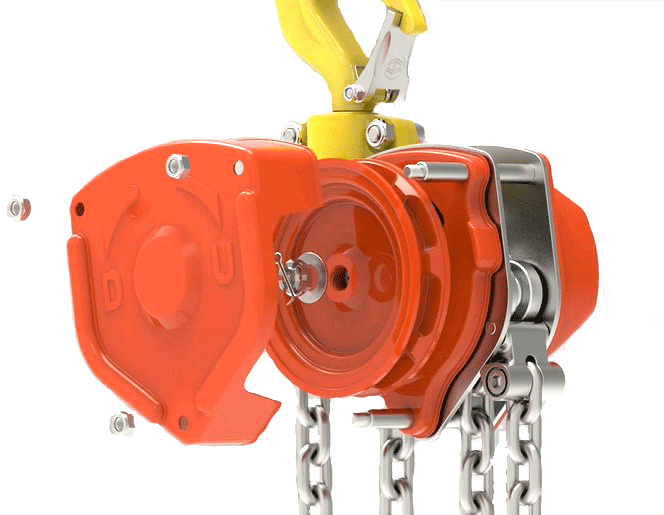

With excellent corrosion protection thanks to specialised component such as stainless fixings, category 5, 3 layer marine paint finish and high performance specialist grease throughout these manual chain blocks are perfect for use subsea or for topside applications.

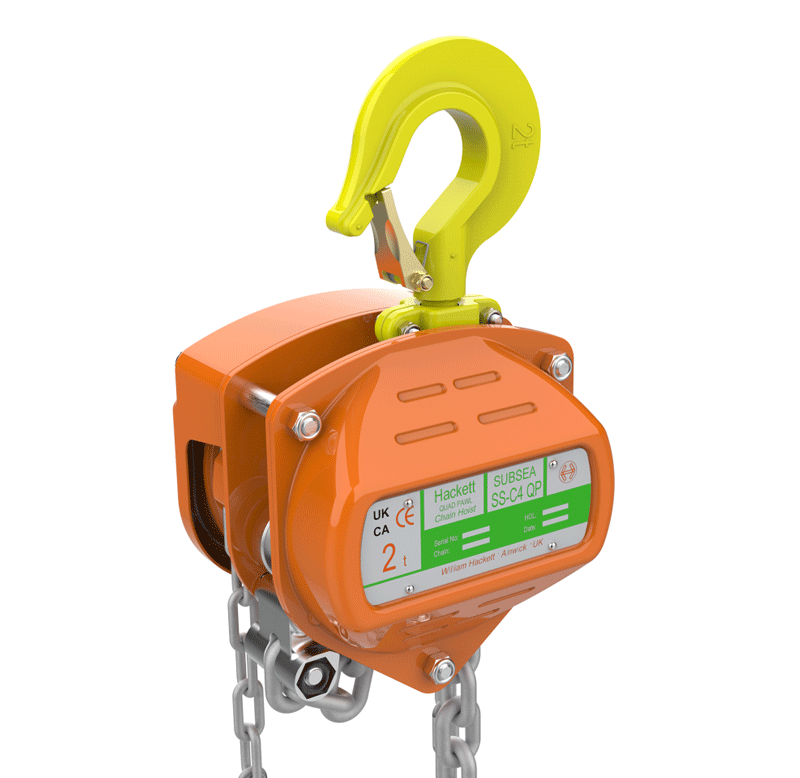

Cast steel hooks with integrated safety catches provide very secure connection points and incorporate overload indicator marks and traceability codes.
Whilst vertical straight lifts are the usual lifting method for this type of hoisting device the SSC4 may be used where fleeting or cross hauling is necessary up to 45 degrees. Load capacity reduction is not required thanks to its thorough testing and verification.
Additional Subsea Manual Hoist Information
If you need, and we are sure you do; additional information on this subsea chain block they you will find more date, specifications, dimensions and a user guide in the tab above this description.
More Subsea Hoisting Devices
The range of subsea hoists at Lifting Gear Store include a number of chain blocks and subsea lever hoists as well as ROV operated models. To keep a check on your loads we also have the subsea load cell shackle for accurate load monitoring.
| Weight | N/A |
|---|---|
| Capacity (SS C4) | 500KG, 1000KG, 1600KG, 2000KG, 3200KG, 5000KG, 7500KG, 10000KG |
| Height of Lift (SS C4) | 3MTR, 4MTR, 5MTR, 6MTR, 7MTR, 8MTR, 9MTR, 10MTR |
Subsea Chain Block SSC4 Information
Subsea Chain Block SSC4 Manual
Quick Specifications

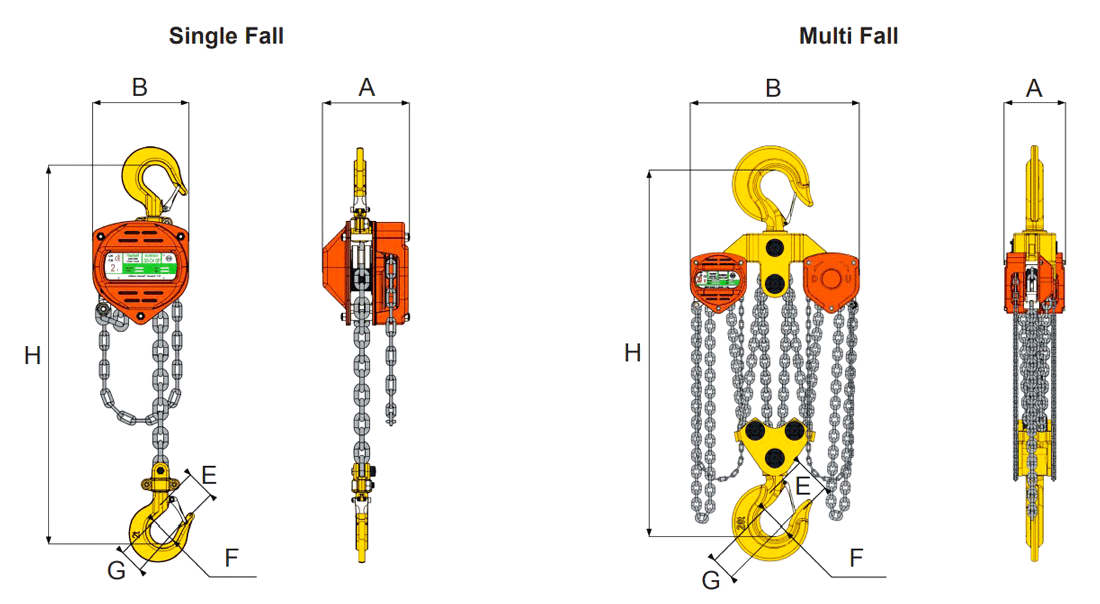

| Part Code | WLL tonnes | No. of Falls | Load Chain mm | Hand Chain mm | Standard Lift m | Dimensions | Mass kg 3m HOL | Extra Weight per m kg | |||||
| A mm | B mm | E mm | F mm | G mm | H min mm | ||||||||
| 025.SS.053 | 0.5 | 1 | 6 x 18 | 5 x 25 | 3 | 134 | 155 | 49 | 40 | 25.5 | 350 | 11.1 | 1.7 |
| 025.SS.103 | 1 | 1 | 6 x 18 | 5 x 25 | 3 | 134 | 155 | 49 | 40 | 25.5 | 350 | 11.1 | 1.7 |
| 025.SS.163 | 1.6 | 1 | 8 x 24 | 5 x 25 | 3 | 157 | 185 | 51.5 | 40 | 30 | 390 | 16.8 | 2.2 |
| 025.SS.203 | 2 | 1 | 8 x 24 | 5 x 25 | 3 | 157 | 185 | 54.5 | 44 | 30 | 410 | 16.8 | 2.2 |
| 025.SS.32D3 | 3.2 | 2 | 8 x 24 | 5 x 25 | 3 | 157 | 235 | 61 | 48 | 37.5 | 495 | 24.2 | 3.6 |
| 025.SS.503 | 5 | 2 | 10 x 30 | 5 x 25 | 3 | 180 | 262 | 85 | 60 | 43 | 635 | 38.4 | 5.2 |
| 025.SS.753 | 7.5 | 3 | 10 x 30 | 5 x 25 | 3 | 180 | 373 | 89 | 83 | 53 | 775 | 58.2 | 7.5 |
| 025.SS/1003 | 10 | 4 | 10 x 30 | 5 x 25 | 3 | 180 | 406 | 89 | 83 | 53 | 815 | 68.9 | 9.6 |
| 025.SS/1503 | 15 | 6 | 10 x 30 | 5 x 25 | 3 | 210 | 406 | - | 108 | 80 | 1000 | 116.7 | 13.9 |
| 025.SS/2003 | 20 | 8 | 10 x 30 | 5 x 25 | 3 | 225 | 550 | - | 108 | 80 | 1100 | 149.5 | 19.2 |
| 025.SS/3003 | 30 | 12 | 10 x 30 | 5 x 25 | 3 | 460 | 800 | - | 140 | 112.0* | 1550 | 515 | 27.9 |
| 025.SS/5003 | 50 | 20 | 10 x 30 | 5 x 25 | 3 | 580 | 840 | - | 180 | 140.0* | 2000 | 750 | 45.2 |
