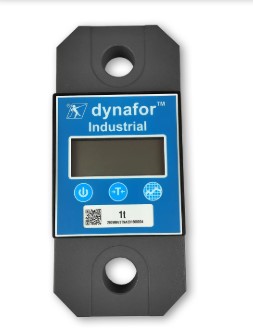

Dynafor Industrial Load Cell Information

The Dynafor Industrial load cell is a digital dynamometer that has been designed and made by the trusted brand Tractel.

With a 0.3% accuracy rate the Dynafor industrial can be used for weighing loads, force measurement testing and towing applications. Their use enables your lifting operation to proceed with the highest safety levels thanks to knowing the precise weight of your load, thus ensuring your lifting equipment is up to the task with no risk of being overloaded.

Water resistant to IP65.

Functions or the Dynafor Industrial Load Cell

The inbuilt micro-processor turns the strain gauge measurement into an electrical signal which is then imported to the integrated display for you to read.

The display incorporates a number of functions to toggle between, these include on/off; Tare; peak hold; auto zeroing and kg, daN & lbs unit measurements. There is also an auto stop function which will turn off the device after 20 minutes if there is no load applied or no variation, thus saving battery life (powered by 2xAAA batteries).

On the 18mm display screen you can read a number of measurements and other data including:-

strain value, net and gross measurement values, peak load indicator, measurement sign, unit signs and battery indicator.

For more technical details and dimensions please see the specifications above where you will also find a manual.

Other Load Calculating Devices

Lifting Gear Store can supply a range of load calculating devices including other tension load cells as well as crane scales all with differing capacity capabilities. Supplementary equipment can also be provided so whether you need lifting slings, shackles or a lifting hoist then we can help. Browse the website to find the best products for your needs. If you can’t find what you are looking for then get in touch, we can usually help.
