Dynafor Pro Load Cell Useful Information

Just like other Dynafor load cells the strain gauge measuring technique is used to obtain the weight and force measurements you need in a range of units.

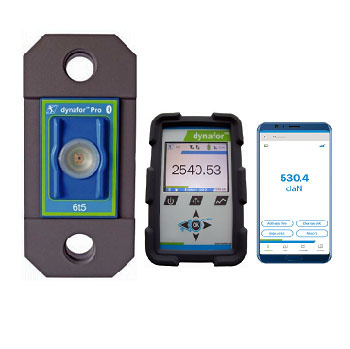

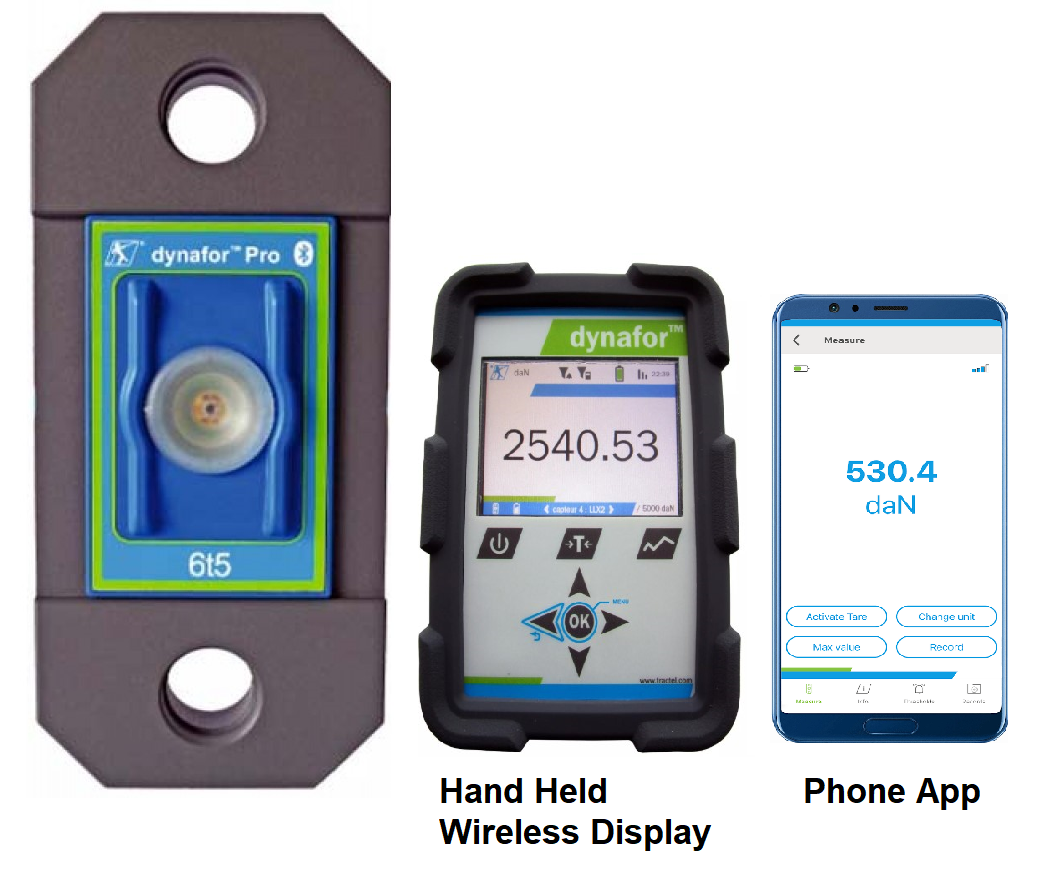

The Dynafor Pro tension load cell does not have a built in display screen, however the measurement information can be viewed in two different ways.

Firstly you can purchase the separate hand held display unit with digital display which uses an RF radio frequency and has many functions available. The connection range between the load cell and hand held unit is 400 metres (in open field). Additionally up to 4 load cell sensors can be monitored on one device. Software is available for downloading the information to your computer.

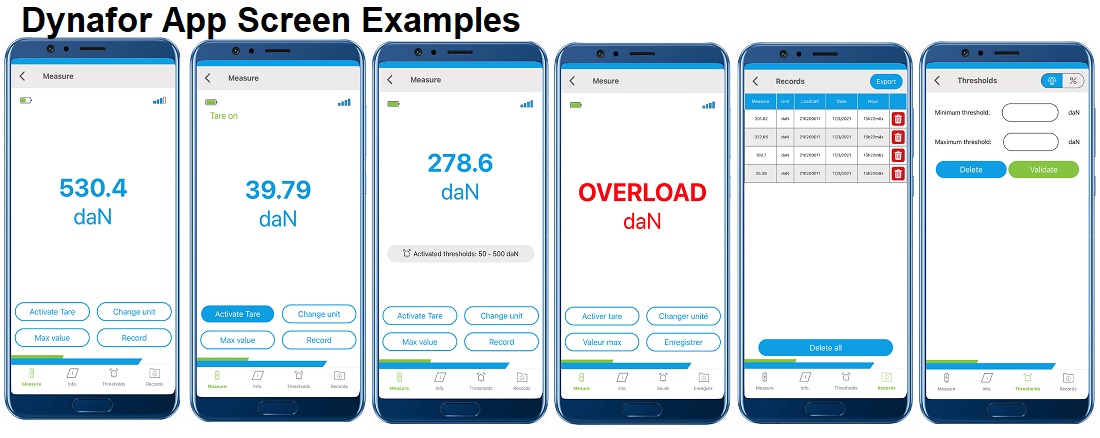

Alternatively you can download the Dynafor App to your Android or IOS smart phone and connect to the load cell via Bluetooth technology. The connection range for this method is 30 metres and can only monitor 1 sensor at a time with basic functions.

As you can see there are more benefits to using the HDD hand held device rather than the mobile app, although it greatly depends on how you wish to use the load cell/s. For more information on the HDD hand held device you can download the specs and/or the manual above. You will also find the full specifications and manual on the Dynafor Pro load cell.

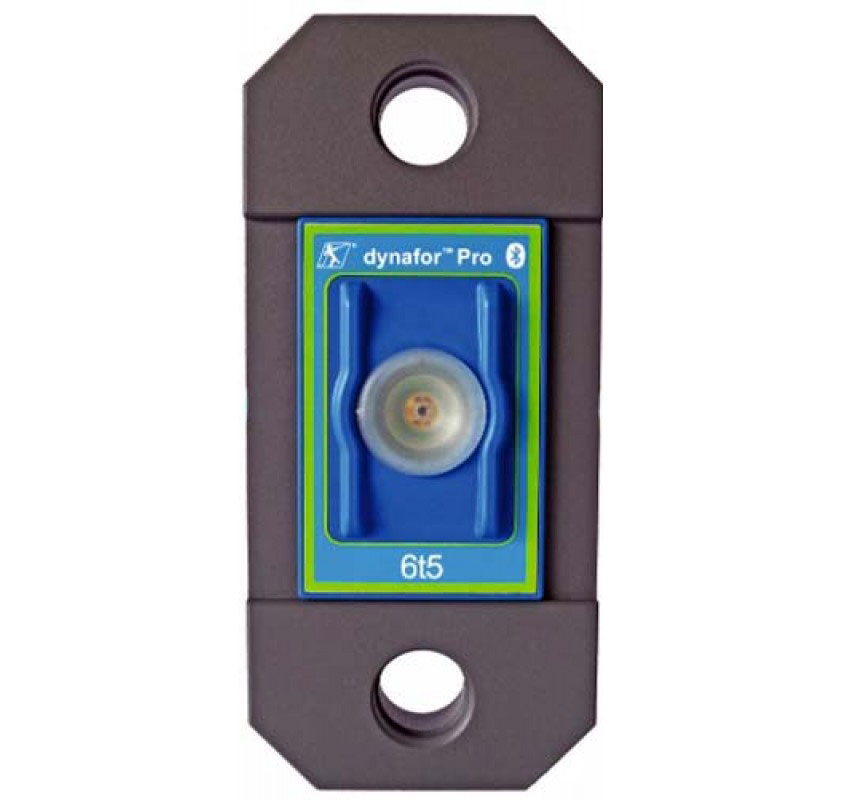

Compatible with standard bow shackles the Dynafor Pro is easy to set up and implement into your lifting application. Powered with just 3xAA batteries, waterproof to IP64 and boasting accuracy to 0.2% you can’t go wrong with the Pro load cell.

More Load Calculation Equipment

When it comes to the Dynafor range, Lifting Gear Store can also supply the handifor, the industrial and the expert models. Crane scales offer a slightly different variation to monitor loads and worth considering, all can be found in the load cell and crane scale category.
