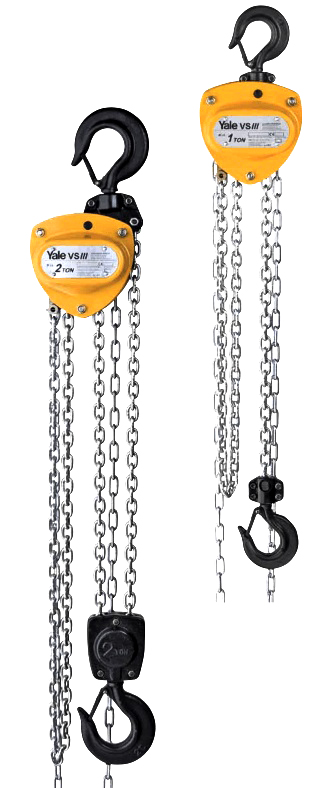

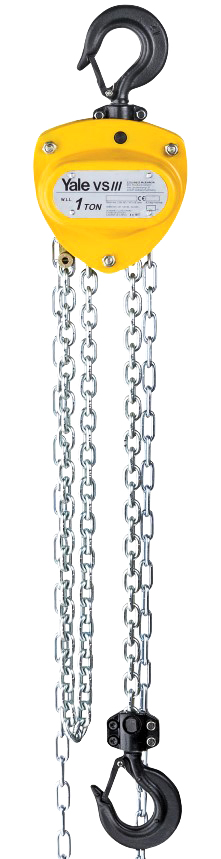

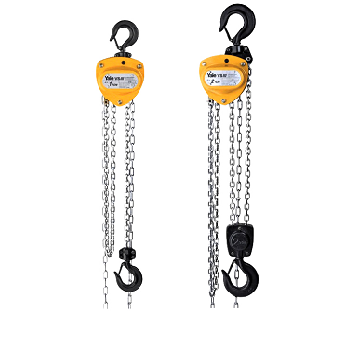

Yale VSlll Manual Chain Hoist
£133.23 – £571.48
The Yale VSlll manual chain hoist is ideal for medium duty lifting applications. It comes in a range of capacities from 250kg
up to 5000kg and has the option of a 3 metre or 6 metre height of lift as standard, Up to 5000kg can be purchased right here on the Lifting Gear Store website.
Yale VSlll Manual Chain Hoist Key Features
The tried and tested Yale VSlll manual chain hoist is ideal for most everyday lifting operations and enables precision lifting. Its compact nature means its pretty easy to handle and transport, especially the smaller models.
Featuring an upgraded precision machined roller chain guide which helps to prevent the hand chain from tilting or jamming, thus operation is smooth.
High quality bearings are used throughout and allow the drive pinion and load chain to run through smoothly.
The load chain is zinc plated and together with the zinc plated and yellow chromated brake components and guide rollers the VSlll has good corrosion protection.
All hooks can swivel through 360 degrees are equipped with robust safety latches, therefore anchoring the hoist and attaching loads is quick, easy and safe.
The hoists overall stability is great thanks to the strong bolts used between the housing plates and the reinforced hand wheel cover, which also offers protection to the inner components.
VSlll Manual Hoist Options
As well as all the standard features mentioned above the VSlll manual hoist has a couple of optional extras to consider.

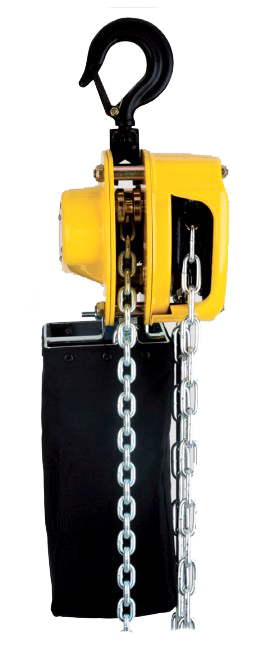

Firstly if you would like to enhance the safety during operation then consider the additional overload protection device. These hoists incorporate quite a bit of chain, especially the larger models, the chain can often get in the way or become tangled, the use of a chain container eliminates these issues by holding the excess portion of chain safely out of the way.
Other Manual Chain Blocks and associated Equipment
The Lifting Gear Store has a range of manual chain hoists available for online purchase. The Delta chain block is a best seller, however we also have a choice from Yale, GT Viper and Hacketts. Other equipment associated with hoisting such as beam trolleys, lifting slings and shackles can also be purchased with ease right here in our online store.
| Weight | 9.0 kg |
|---|---|
| Size Required (VSlll Manual Hoist) | 500KG x 3 MTR HOL, 500KG x 6MTR HOL, 1000KG x 3MTR HOL, 1000KG x 6MTR HOL, 2000KG x 3MTR HOL (1 Fall), 2000KG x 6MTR HOL (1 Fall), 3000KG x 3MTR HOL (2 Fall), 3000KG x 6MTR HOL (2 Fall), 5000KG x 3MTR HOL, 5000KG x 6MTR HOL |
PDF DOWNLOADS
Yale VSlll Information & Specifications PDF
Quick Specifications
| Model | Capacity in kg/number of chain falls | Chain dimensions d x p (mm) | Lift per 1m hand chain overhaul (mm) | Pull on hand chain at WLL daN | Weight at standard lift (3m) KG |
| VSIII 0.25/1 | 250/1 | 4 x 12 | 50 | 20 | 3.9 |
| VSIII 0.5/1 | 500/1 | 5 x 15 | 26 | 21 | 9 |
| VSIII 1/1 | 1000/1 | 6 x 18 | 24 | 24 | 11.5 |
| VSIII 1.5/1 | 1500/1 | 8 x 24 | 17 | 30 | 17.5 |
| VSIII 2/1 | 2000/1 | 8 x 24 | 19 | 32 | 19 |
| VSIII 2/2 | 2000/2 | 6 x 18 | 15 | 29 | 17.3 |
| VSIII 3/1 | 3000/1 | 10 x 30 | 12 | 40 | 31 |
| VSIII 3/2 | 3000/2 | 8 x 24 | 10 | 37 | 27 |
| VSIII 5/2 | 5000/2 | 10 x 30 | 8 | 41 | 43 |

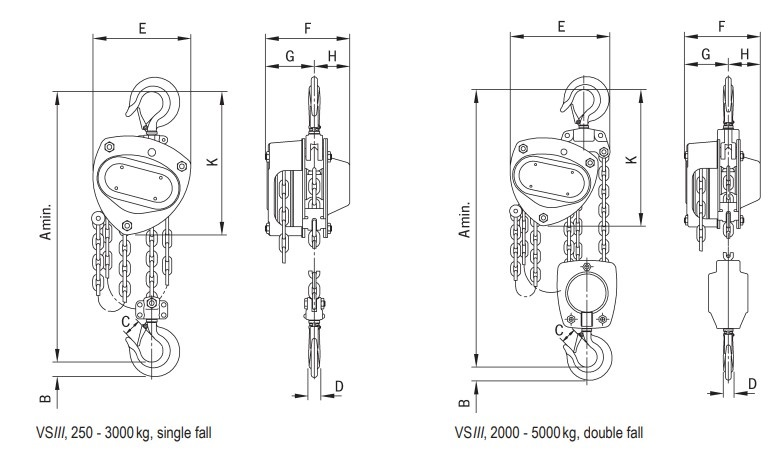

| Model | VSIII 0.25/1 | VSIII 0.5/1 | VSIII 1/1 | VSIII 1.5/1 | VSIII 2/1 | VSIII 2/2 | VSIII 3/1 | VSIII 3/2 | VSIII 5/2 |
| A min,mm | 290 | 350 | 380 | 450 | 460 | 490 | 570 | 580 | 700 |
| B,mm | 12 | 21 | 28 | 33 | 36 | 36 | 45 | 45 | 47 |
| C,mm | 26 | 23 | 27 | 36 | 35 | 35 | 40 | 40 | 45 |
| D,mm | 11 | 16 | 20 | 22 | 29 | 29 | 29 | 29 | 40 |
| E,mm | 118 | 145 | 158 | 180 | 205 | 170 | 240 | 220 | 250 |
| F,mm | 113 | 140 | 155 | 175 | 180 | 155 | 210 | 175 | 190 |
| G,mm | 65 | 80 | 87 | 85 | 94 | 87 | 110 | 94 | 95 |
| H,mm | 48 | 60 | 68 | 90 | 86 | 68 | 100 | 81 | 95 |
| K,mm | 190 | 240 | 270 | 300 | 320 | 285 | 370 | 340 | 410 |
