Yale 360 Mini Manual Chain Hoist Benefits

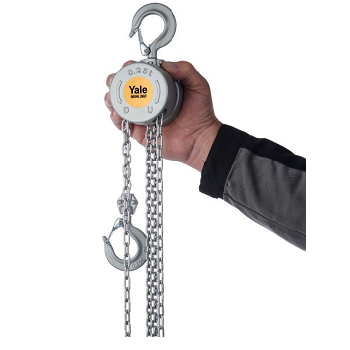

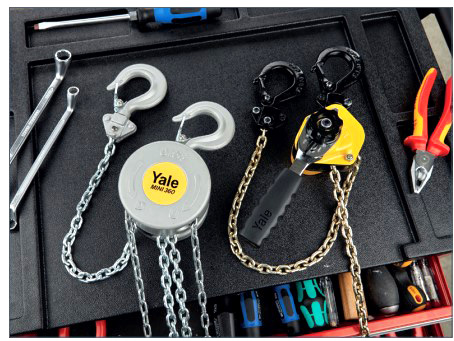

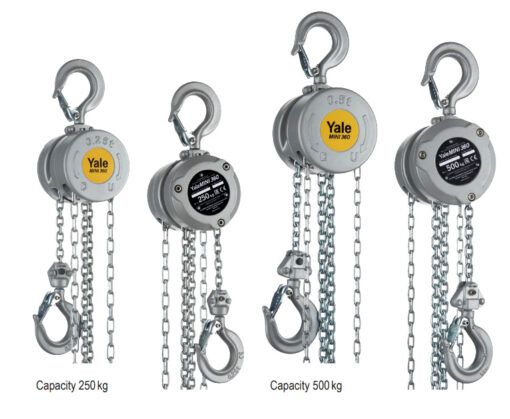

Quite obviously the compact size of the Yale 360 manual chain block is its biggest benefit, fitting neatly in your tool box. Its size and weight means that handling, storing and transportation is a breeze, however don’t let its small size fool you! Capable of handling loads up to 250kg or 500kg depending on the model chosen, lifting loads just became a whole lot easier.

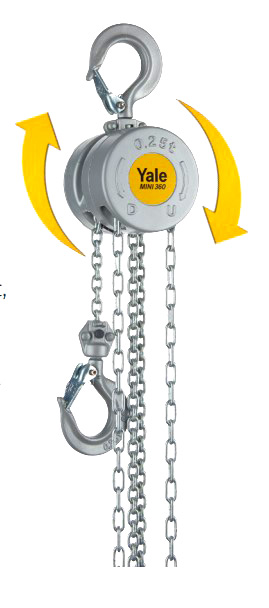

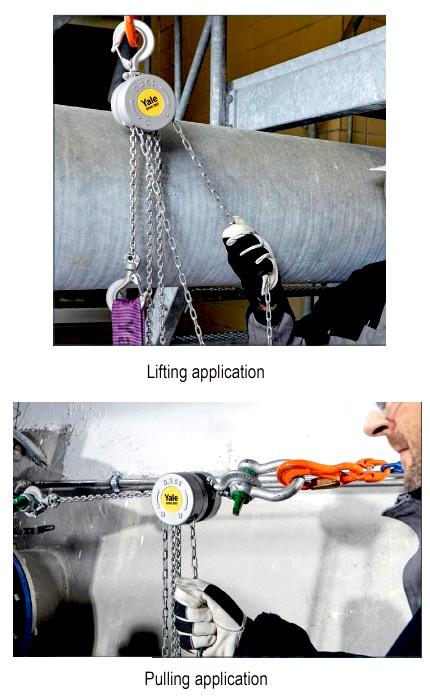

The other big benefit to this manual hoist is that it can be used for pulling and tensioning applications, not just your typical lifting scenario. This is thanks to the fully rotational hand chain guide which alters the position of the hand chain, thus you can pull it from pretty much any angle.

When it comes to safety, the design of the 360 mini manual hoist has multiple benefits. Firstly its light enough not to put any physical strain on you when handled. Secondly, you can operate the chain hoist away from the hazard zone when the hand chain is positioned at an angle, rather than the usual straight down alignment.

360 Mini Manual Chain Block Features

With the body being made from aluminium the weight is kept low, whilst also offering excellent protection to the internal components. Benefiting from a load pressure brake system, not only is positioning loads precise it will hold the load in any position, thus if your load needs maintenance for example it can be held in the optimum position for the task.

The load chain wheel and chain guide ensures the chain moves smoothly whilst ensuring the chain remains in contact with the load wheel pockets.

Fully rotational anchor and load hooks incorporate safety catches and are made from high alloy tempered steel, they will yield, not snap if overloaded.

Galvanized load chain is used for the Yale 360 mini manual chain hoist and complies with all the necessary regulations.

3 metres height of lift is the standard, however we can also supply for 6 metre or 10 metre heights if required, all choices can be purchased on our website. More information and full specifications can be found in the tab above.

Similar Hoists and Supplementary Equipment

At the Lifting Gear Store you will find a number of other manual hoists including more from the Yale brand in chain block and lever hoist/pull lift varieties. Delta is our other popular brand which we import from the Netherlands and keep on the shelf for quick delivery.

Lifting slings and shackles as well as beam trolleys tend to go hand in hand with many lifting operations, and we can supply those to.
