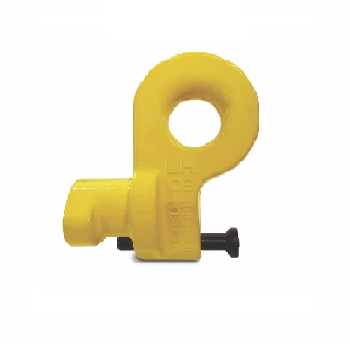

Yale CLB Container Lugs
Ideal for top-side or bottom side container lifting applications the Yale CLB container lugs can handle loads up to 50 tonne depending on the lifting set up.
Yale CLB Container Lugs Information
Sold as a set of four including 2 x right and 2 x left sided lugs. They can be used in the top or bottom ports on the long side of steel containers.
When used in a vertical lift the top working load limit is 50000kg, however when used with lifting sling angles up to 50 degrees from vertical the top WLL is 32000kg. It is worth noting that these should not be used with a single 4 leg chain sling, but individual ones.
This updated model incorporates a spring loaded bolt which prevents the lug from accidentally coming out, thus offering optimum safety.
These easy to use lugs simply push into the ports on the container and turned to lock in, thus providing secure lashing points for the container to be lifted safely.
Other Container Lugs
If you need to lift your containers from the top ports then take a look at the Yale CLT container lugs which have top WLL of 56000kg. Other lugs we supply that are similar to these CLB side lifting lugs are the Cobra container lugs which have a much simpler design.
If you are also in need of lifting slings and/or shackles then we are able to supply these too, so you can purchase your complete lifting set up in one go.
| Model | WLL (KG) Per set of 4 | Type of lifting | Sling angle from vertical | Weight (KG) | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| CLB | 32000 | SIDE | 50° | 18 | 152 | 181 | 45 | 37 | 73 | 75 | 40 |
| 50000 | Vertical |
