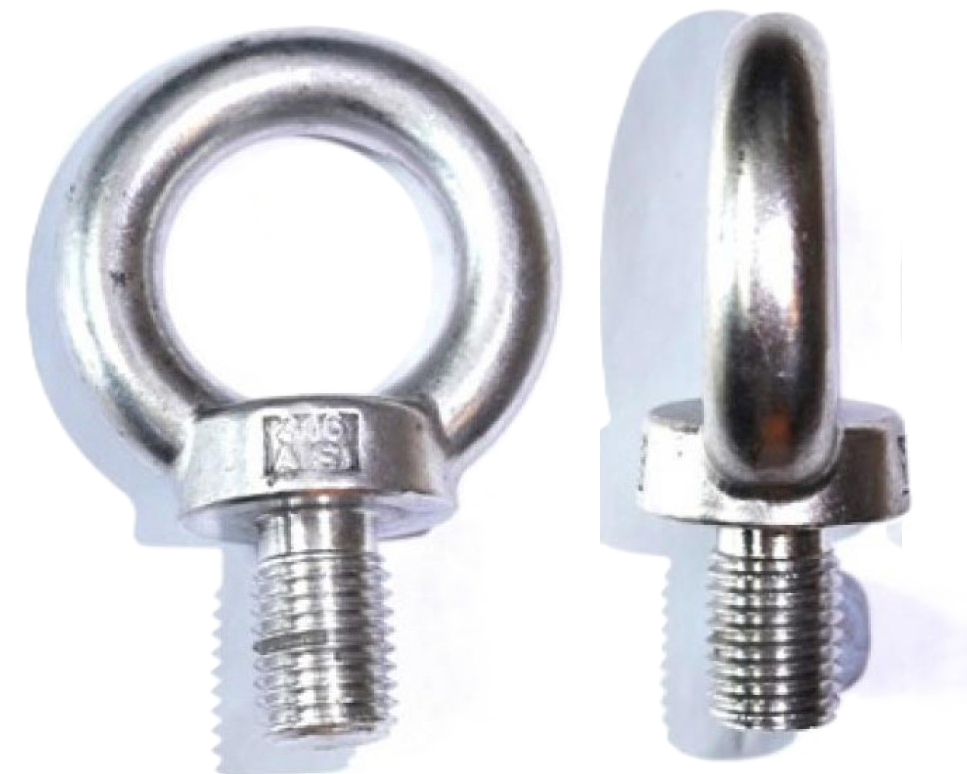

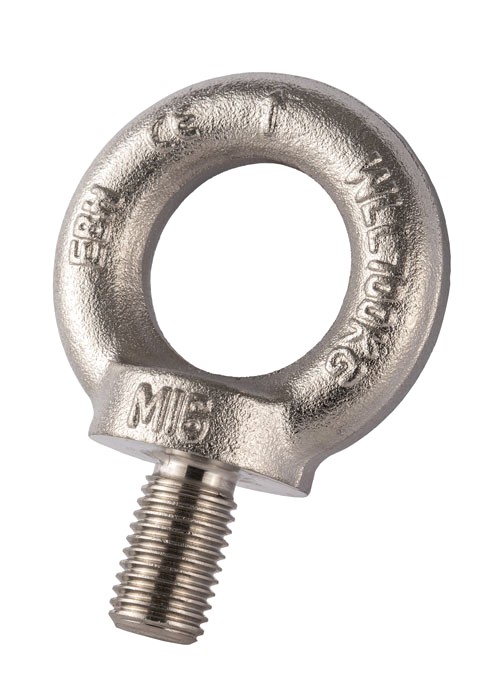

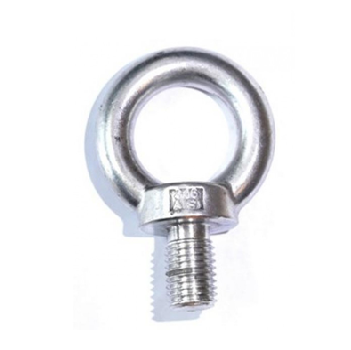

Stainless Steel Eye Bolt – Tested
Price range: £2.20 through £66.43
Tested for lifting tasks the stainless steel eye bolt is of the collared variety and comes in a range of sixes with a maximum WLL of 4.6 tons.
Stainless Steel Eye Bolts Details at a glance
- Generally to DIN 580
- AISI 316 Grade stainless steel
- Safety Factor = 4:1
- Finish = Polished
- Max. WLL available – 4.6 tons
- Max. thread diameter available – 36mm
Stainless Eye Bolts – Tested For Lifting
Made generally to DIN 580 standards in AISI 316 stainless you can be assured of quality, strength and safety. Stainless is a great material to be used outdoors, in clean environments and in other challenging environments thanks to its excellent corrosion resistant properties.
These eye bolts have been tested and certified for use in lifting applications; they have a good safety factor or 4;1, thus the minimum breaking load is 4 times the stated working load limit.
Be aware though – this figure is only to ensure substantial safety margins are in place in case of unintentional overloading or other errors. You must always remain within the WLL marked on the product.
Certification provided includes the EC declaration of conformity; 3.1 (material traceability), 2.1(test certs) & 2.2 (Inspection documents) can be provided on request.
Check out the specifications above for all more technical details. Don’t forget to browse the rest of our eye bolt collection to ensure you are choosing the best product for your task. Get in touch if you need any help.
| Weight | N/A |
|---|---|
| Thread/Capacity (SS-Tested) | 6mm / 0.07 Ton, 8mm / 0.14 Ton, 10mm / 0.23 Ton, 12mm / 0.34 Ton, 16mm / 0.70 Ton, 18mm / 0.90 Ton, 20mm / 1.2 Ton, 24mm / 1.8 Ton, 36mm / 4.6 Ton |

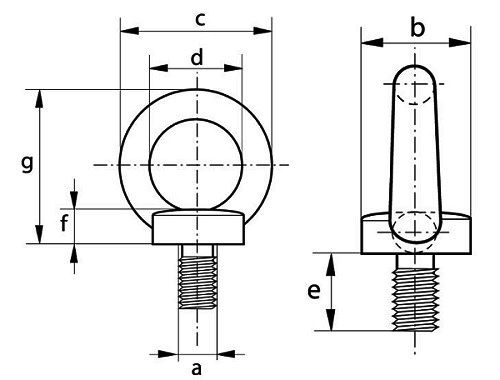

| Working Load Limit | Diameter Thread | Diameter Base | Diameter Eye Outside | Diameter Eye Inside | Length | Thickness Base | Height | Weight Per 100 Pieces |
| tonnes | a mm | b mm | c mm | d mm | e mm | f mm | g mm | kg |
| 0.07 | 6 | 20 | 36 | 20 | 13 | 6 | 36 | 6 |
| 0.14* | 8 | 20 | 36 | 20 | 13 | 6 | 36 | 6 |
| 0.23 | 10 | 25 | 45 | 25 | 17 | 8 | 45 | 10.3 |
| 0.34 | 12 | 30 | 54 | 30 | 20.5 | 10 | 53 | 17.7 |
| 0.49 | 14 | 35 | 63 | 35 | 27 | 12 | 60 | 27.7 |
| 0.70* | 16 | 35 | 63 | 35 | 27 | 12 | 62 | 28 |
| 0.9 | 18 | 40 | 72 | 40 | 30 | 14 | 71 | 40.5 |
| 1.20* | 20 | 40 | 72 | 40 | 30 | 14 | 71 | 42.4 |
| 1.5 | 22 | 45 | 81 | 45 | 35 | 14 | 80 | 67.3 |
| 1.80* | 24 | 50 | 90 | 50 | 36 | 18 | 90 | 83.4 |
| 3.20* | 30 | 65 | 108 | 60 | 45 | 22 | 109 | 166 |
| 4.60* | 36 | 75 | 126 | 70 | 54 | 26 | 128 | 265 |
