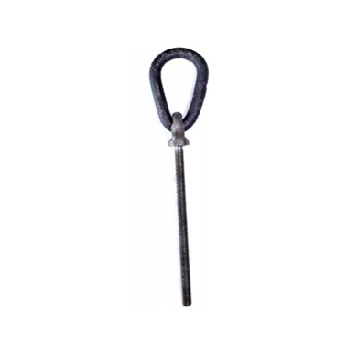

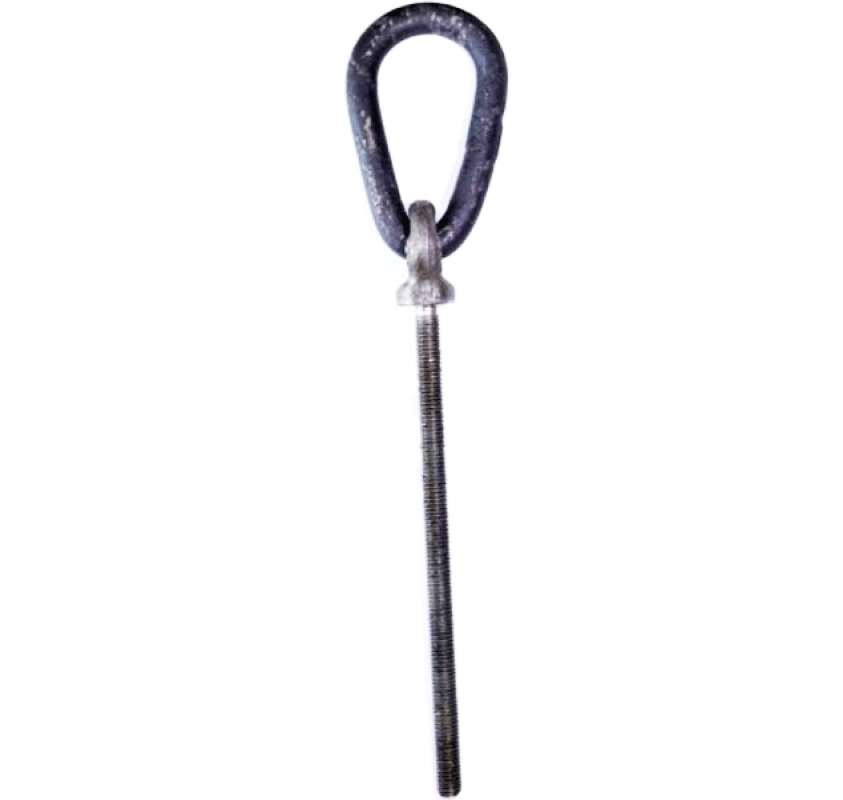

Long Shank Collared Eye Bolts with Egg Link Details
Both the eye bolt and the egg link is manufactured from high tensile steel, they deliver high strength and durability. The material choice ensures consistent performance under heavy loads, making them suitable for construction, manufacturing, rigging, and maintenance applications.
The collared design of these long shank eye bolts ensures a tight fit without pulling through, even force distribution and helps to prevents the shank from bending.
The permanently fitted egg link reeves through the eye of the eye bolt and provides a flexible lifting point to suit angles creates by your lifting set up.
Sizes of Long Shank Collared Eye Bolts with Reevable Egg Link
We supply both metric and bsw types in which the measurements differ slightly due to using different units of measurement.
METRIC: In the metric version the range of working load limits (WLL) extends from 0.25 to 4 tons. Thread diameters range from 10mm up to 30mm and the thread length is 178mm.
BSW: The BSW (British Standard Whitworth) type incorporates WLL from 0.25 to 2 tons; thread diameters from 3/8 to 7/8 inch, and thread lengths of 7 inches.

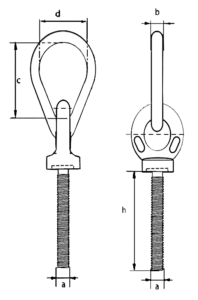

For all other measurements including eye and egg link dimensions please refer to the full specifications in the tab above.
Angled Loading
One valuable characteristic of these long shank collared eye bolts with egg link is their suitability for angled loading applications. While many lifting components are for strictly vertical loading, the collar feature and reevable link allow these eye bolts to handle off-axis forces easily and more effectively. Some de-ration of the WLL may need to be applied for specific angles so always follow the manufacturers guidelines.
Safety and Finish
Safety, of course is paramount in every lifting application and using these lifting points is no exception. They have been tested to breaking point and thus have a 5;1 safety factor, or 5x WLL. This is to provide a substantial safety margin in case of errors and should not be used for your lifting tasks. Always stick well within the stated WLL for optimum safety.
These eye bolts come in a self coloured finish.
